The Castle Gate
Equipment height
4.15 m
Space requirement
7.15 m x 2.00 m
Safety zone
5.30 m x 10.50 m
Min. fall protection
46.20 m²
Height of fall
2.20 m
Concrete necessary m³
3.40 m³
Recommended minimum age
For children from the age of 3
Number of user
57
Standards and Rules
EN 1176

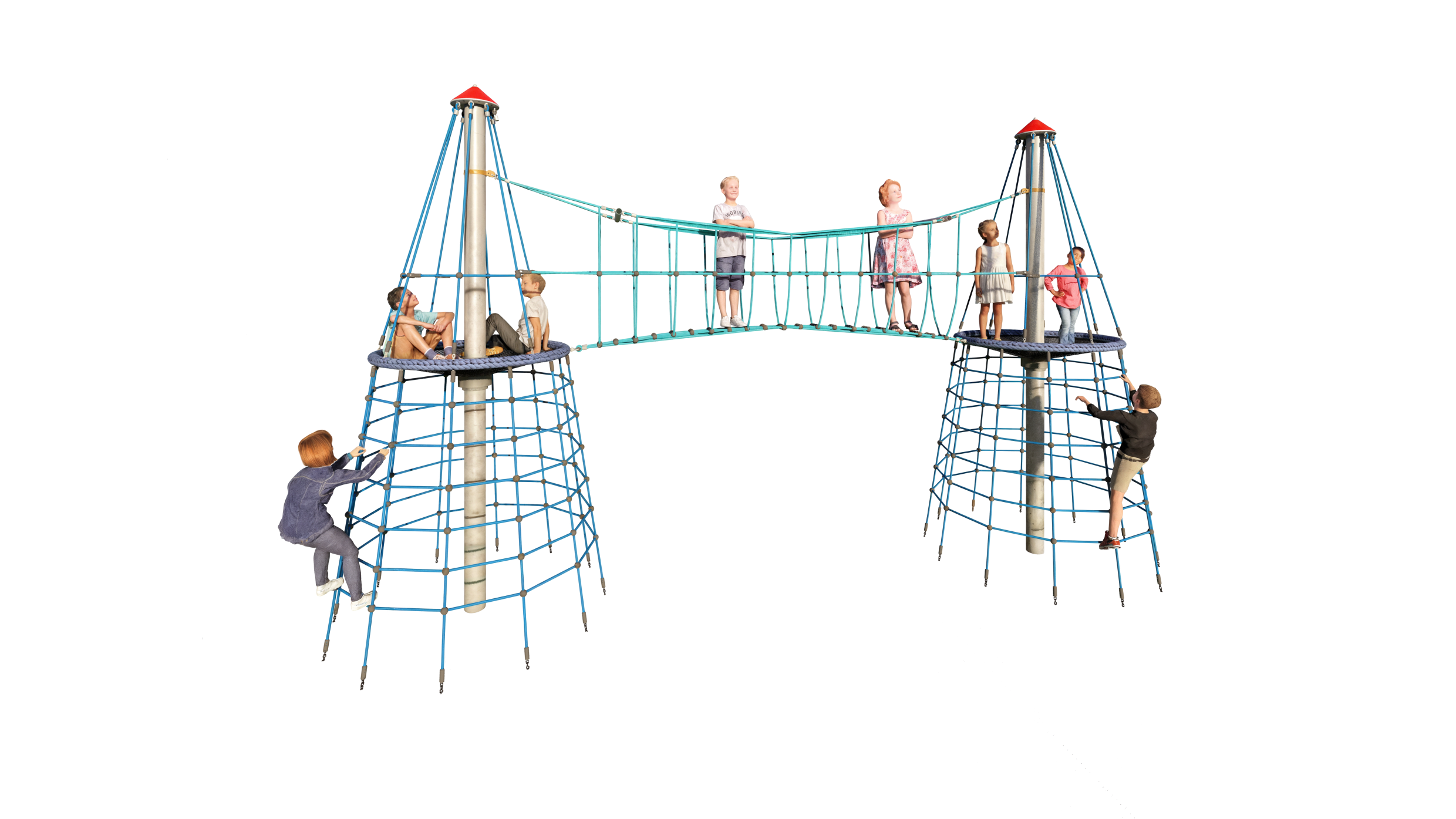

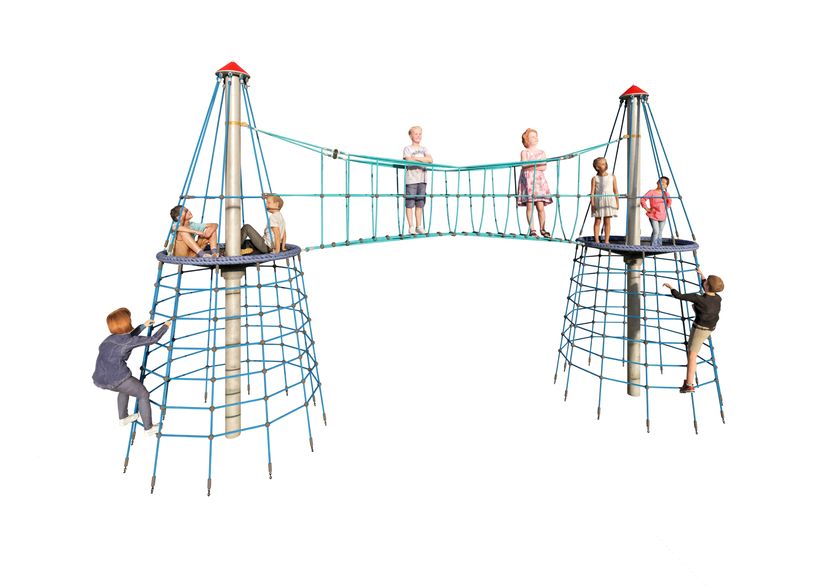

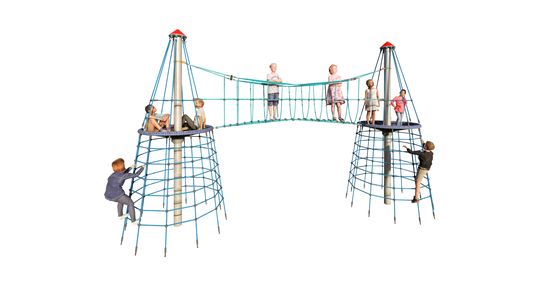

Castle Gate
The Castle Gate is ideal for children from the age of 3. This equipment offers a variety of challenges that children of this age are looking for. Motor skills are trained and, of course, the fun of movement is right at the top!
Equipment:
- 2 Steel poles (Ø 160 mm), hot-dip galvanized, length: 5.00 m, with cover cap
- 4 rope ladders
- 2 Climbing ropes with climbing aids
- Metal parts made of stainless steel or hot-dip galvanized
- 2 Original HUCK birds nest (Ø 1.90 m)
- Both towers connected by a rope bridge
- Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)
Our HUCK rope play equipment is characterised by its versatility and quality. In addition to various rope colours, such as green, blue, yellow and red, you can also choose from different plastic adapter colours. The colour of each device can be adapted to almost all customer requirements.
To ensure the best possible quality for you, our products are manufactured in our own premises in Germany and checked by our qualified employees before delivery.
Properties
Article number
4592-11
Equipment height
4.15 m
Space requirement
7.15 m x 2.00 m
Safety zone
5.30 m x 10.50 m
Min. fall protection
46.20 m²
Height of fall
2.20 m
Concrete necessary m³
3.40 m³
Recommended minimum age
For children from the age of 3
Number of user
57
Standards and Rules
EN 1176
