The Look-Out
Equipment height
4.15 m
Space requirement
Ø 1.50 m

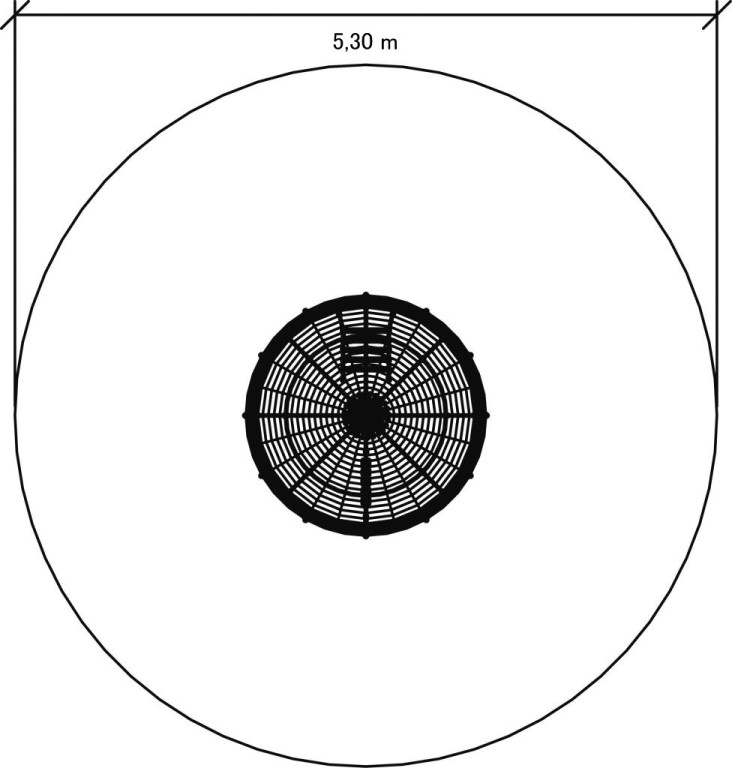

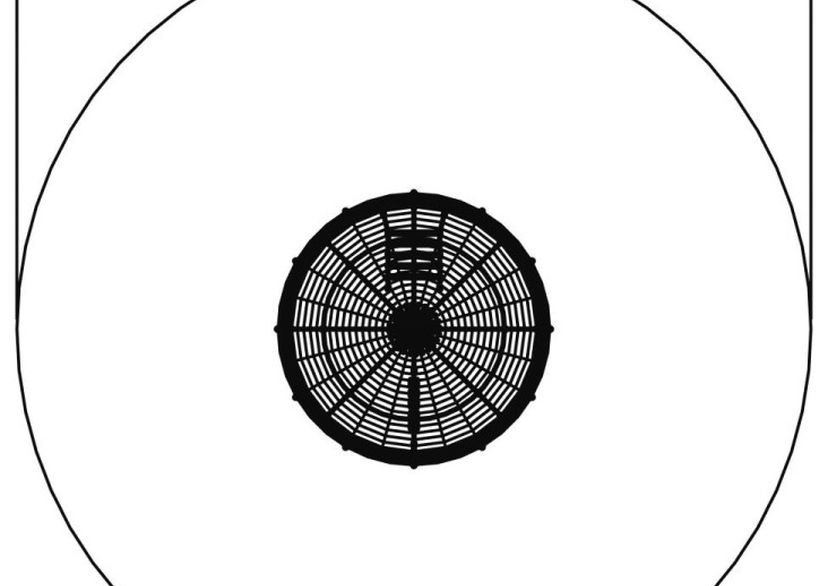

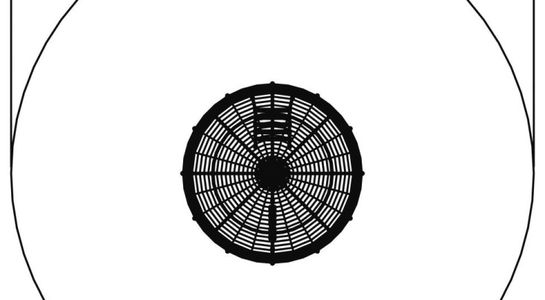

Safety zone
Ø 5.30 m
Min. fall protection
21.70 m²
Height of fall
2.10 m
Concrete necessary m³
2.50 m³
Number of user
15
Recommended minimum age
for children from the age of 3
Standards and Rules
EN1176
The Look-Out
Article No. 4592-10
Steel Post comes galvanised finish
*Powder Coating Options Avaliable on Request*
Our HUCK rope play equipment is characterized by versatility and quality.
Available Rope Colours:
- Orange, Turquoise, Green, Yellow, Blue, Pink, Red, Grey, Rust, Hemp, Black or a Combination.
You can also choose from different plastic adapter colors. Each piece of equipment can be color-matched to meet almost any customer's needs.

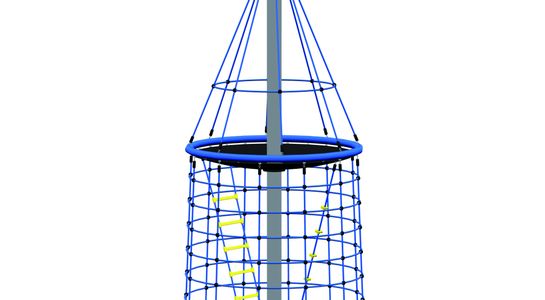

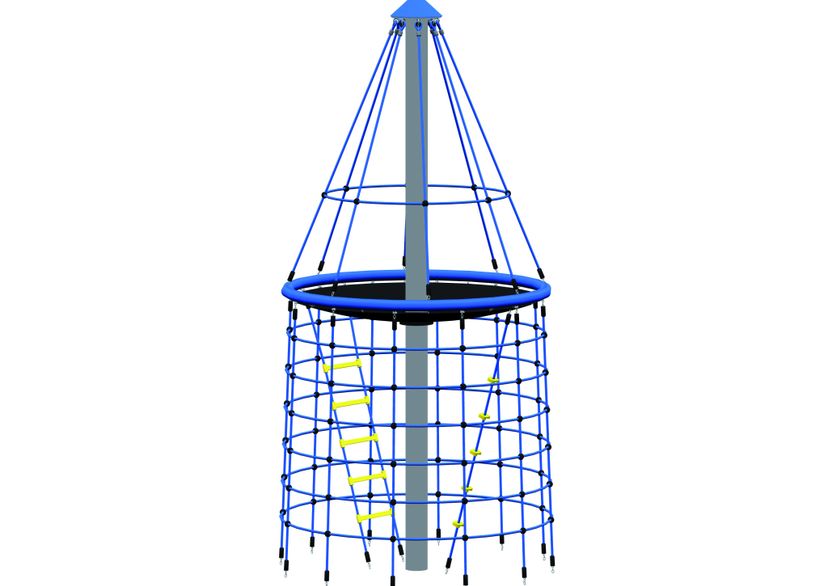

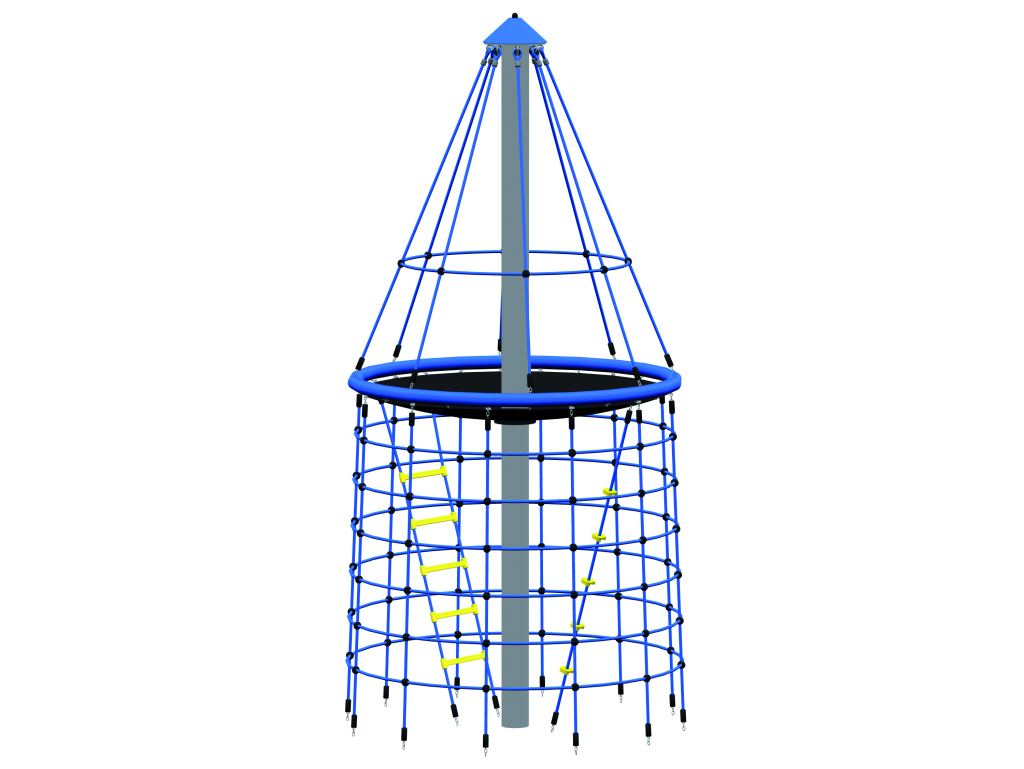

Equipment: Steel mast (Ø 160 mm), hot-dip galvanised, length 5.00 m, cap, Internal rope climbing ladder and climbing rope with climbing aids, 1 original HUCK Bird‘s Nest® (Ø 1.40 m), Metal parts made of stainless steel or hot-dip galvanised, Nets made from Hercules rope (Ø 16 mm, 6-strand, with steel core).
Properties
Article number
4592-10
Equipment height
4.15 m
Space requirement
Ø 1.50 m
Safety zone
Ø 5.30 m
Min. fall protection
21.70 m²
Height of fall
2.10 m
Concrete necessary m³
2.50 m³
Number of user
15
Recommended minimum age
for children from the age of 3
Standards and Rules
EN1176
