"Twin" Swing Frame

Equipment height
2.75 m
Space requirement
7.00 x 3.50 m
Safety zone
8.00 x 5.30 m
Min. fall protection
33 m²
Height of fall for bird’s nest
1.55 m
Height of fall for single-seat swings
1.45 m
Suspension height
2.50 m
Concrete necessary m³
3.00 m³
Number of user
6
Standards and Rules
EN 1176
Article number
4577-3-250
Unit Price
£ 3,977.00
Shipping
Shipping cost
Unit Price
£ 3,977.00 *
* incl. VAT:
£ 4,772.40

Swing Frame “Twin”, made of douglas fir wood

The “Twin” swing set not only brings double the fun to the game, it also makes an important contribution to inclusion: the starting point for the play equipment was a request from an inclusive school, the result is a frame that can be individually equipped and thus enables all children to swing – whether relaxed or together in the bird's nest® swings or particularly safely in the rocking chair.

Equipment:

  • 6 Douglas fir posts (Ø 160 mm), pressure-treated (brown) with post bases and plastic caps
  • 1 Douglas fir head beam (Ø 180 mm) in a length of 6.80 m and pressure-treated (brown)
  • without mounting parts and mounting bearings
  • 8 plastic cover caps (6 x 160 mm and 2 x 180 mm)

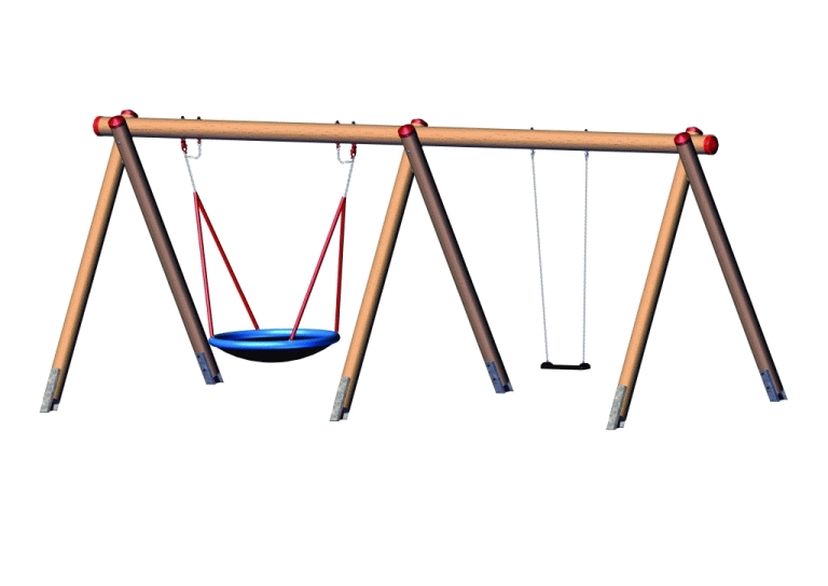

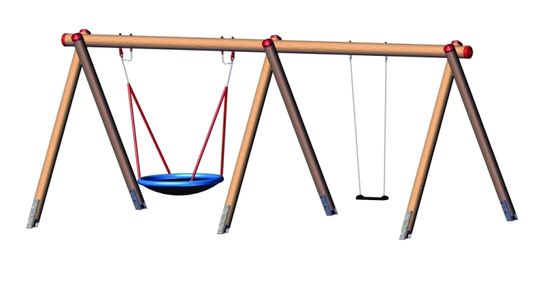

Many combinations are possible for the hanging swing:

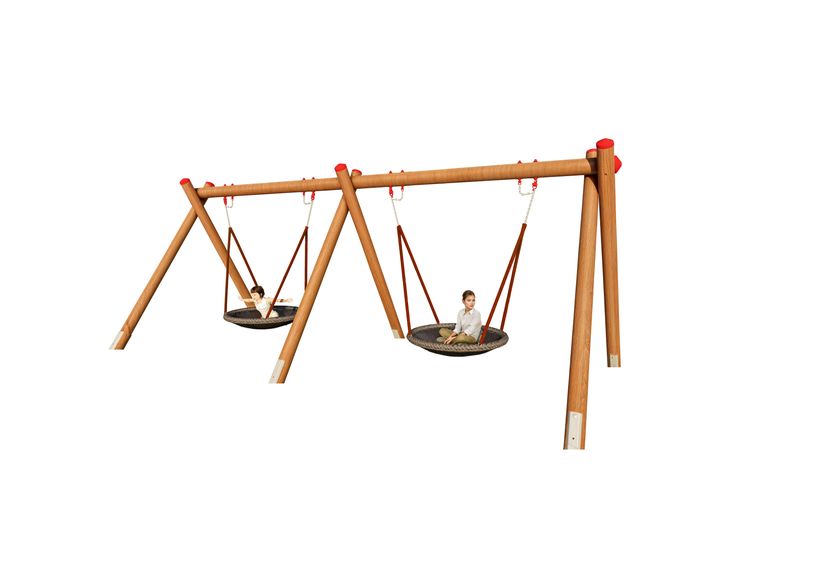

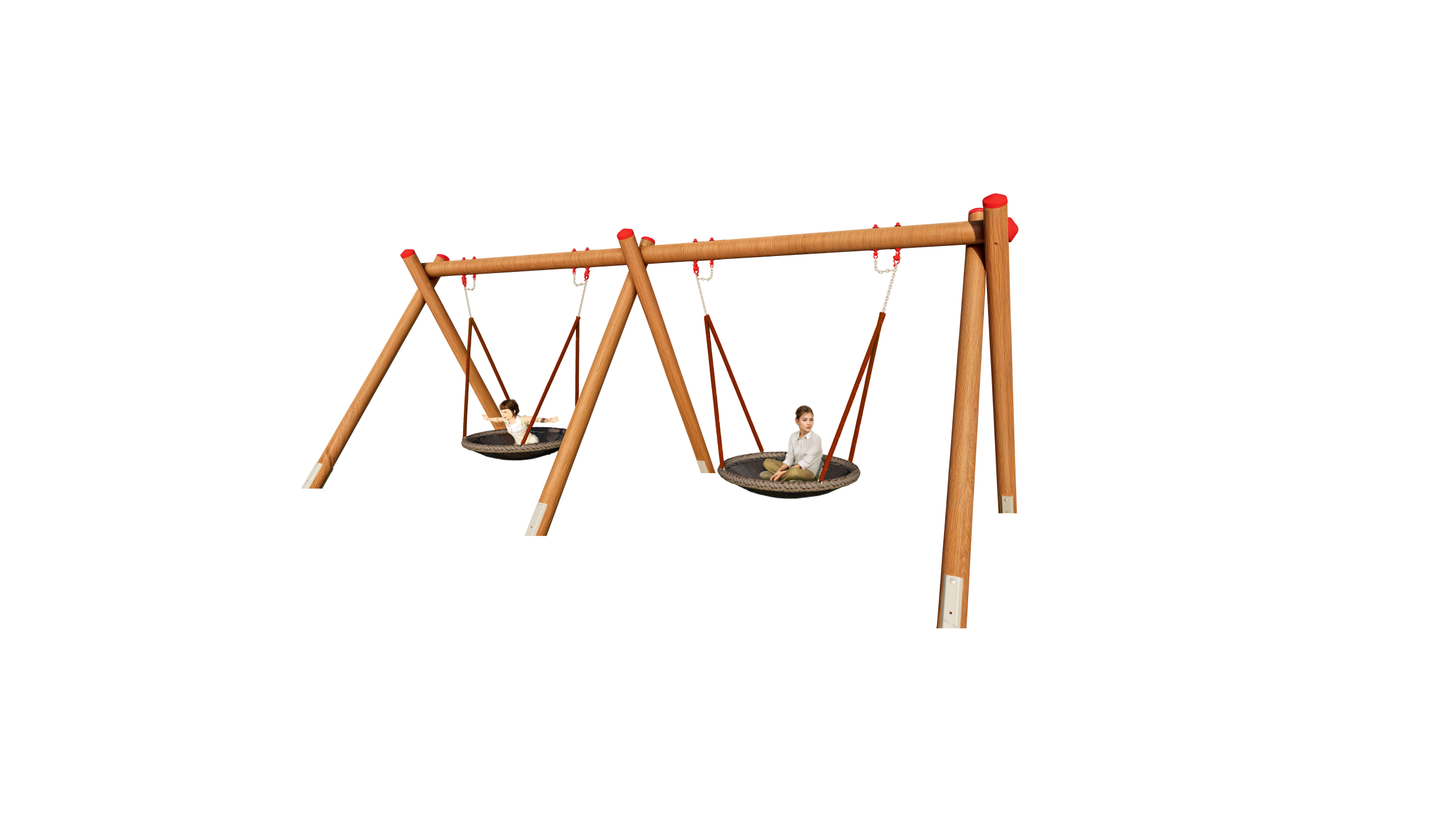

  • 2 Bird's Nest® swings Ø 1.20 m side by side
  • 1 Bird's Nest® swing Ø 1.20 and 1 rocking chair
  • 1 Bird's Nest® swing Ø 1.20 and 1 to 2 swing seats
  • 2 rocking chairs

Our HUCK rope play equipment is distinguished by its versatility and quality. In addition to various rope colors, such as green, blue, yellow, and red, you can also choose from different plastic adapter colors. Each piece of equipment can be color-coordinated to meet almost any customer requirement.

To ensure the best possible quality for you, our products are manufactured in our own production facilities in Germany and checked again by our qualified staff before delivery.

Properties
Article number
4577-3-250
Equipment height
2.75 m
Space requirement
7.00 x 3.50 m
Safety zone
8.00 x 5.30 m
Min. fall protection
33 m²
Height of fall for bird’s nest
1.55 m
Height of fall for single-seat swings
1.45 m
Suspension height
2.50 m
Concrete necessary m³
3.00 m³
Number of user
6
Standards and Rules
EN 1176
