"Twin" Swing Frame

Equipment height
2.75 m
Space requirement
7.00 x 3.50 m
Safety zone
8.00 x 5.30 m
Min. fall protection
33 m²
Height of fall for bird’s nest
1.55 m
Height of fall for single-seat swings
1.45 m
Suspension height
2.50 m
Concrete necessary m³
3.00 m³
Number of user
6
Standards and Rules
EN 1176
Article number
4577-3-250
Unit Price
£ 3,862.00
Shipping
Shipping cost
Unit Price
£ 3,862.00 *
* incl. VAT:
£ 4,634.40

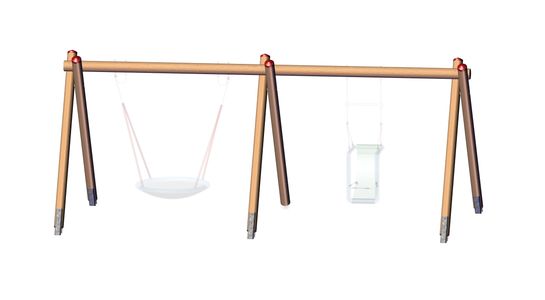

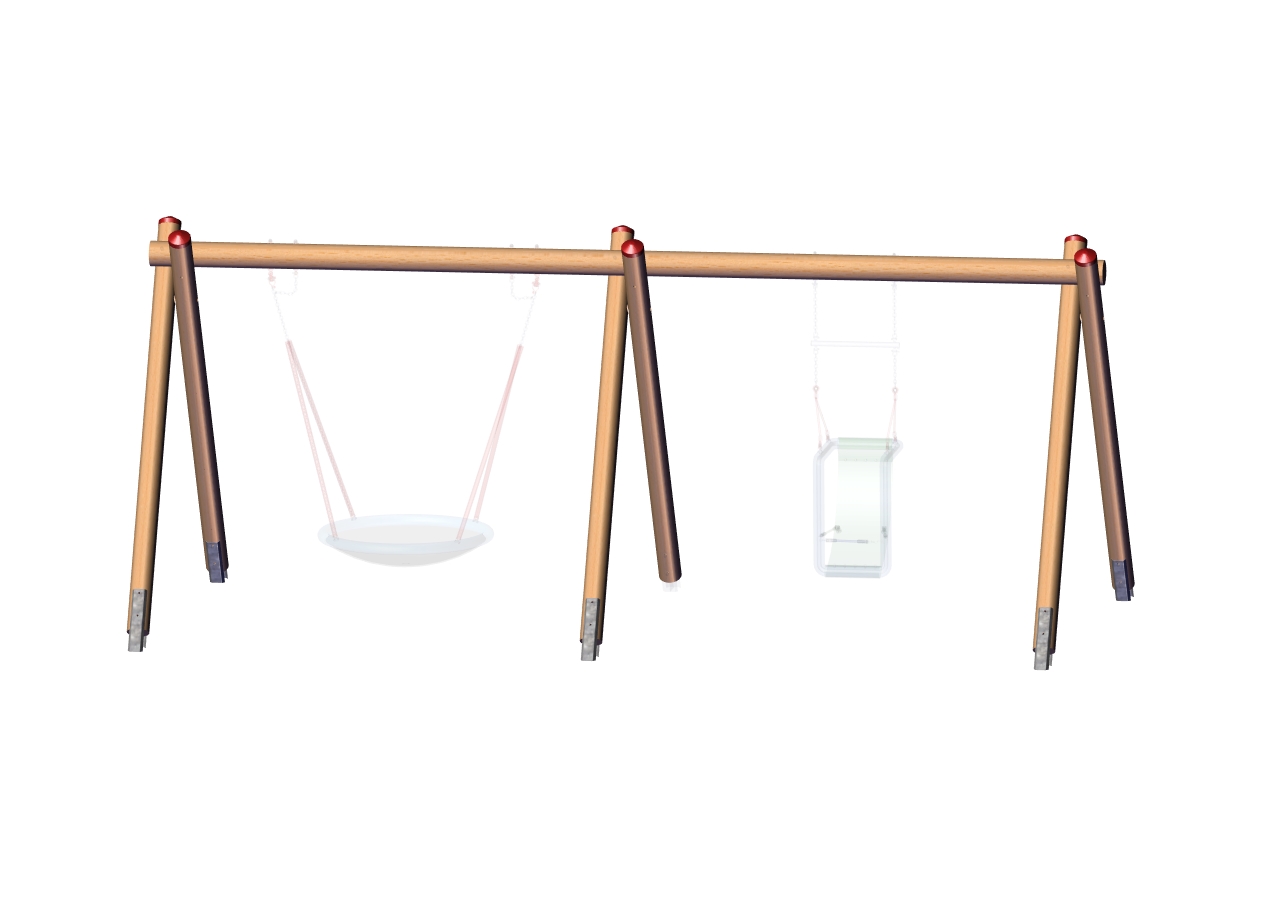

Swing Frame "Twin"

Article No: 4577-3-250

Excludes: Swing Nests and Hooks


The "Twin" swing frame not only brings double the fun into play,
it also makes an important contribution to the topic of inclusion: the starting point
for the play equipment was an inquiry from an inclusive school, the result is a frame
that can be individually equipped and thus enables all children to swing
- whether relaxed or together in the Vogelnest® swings or especially safe in the swing chair.

Equipment:

- 6 Douglas fir posts (Ø 160 mm), pressure impregnated (brown) with post shoes and plastic caps.
- 1 head beam made of Douglas fir (Ø 180 mm) in a length of 6.80 m and pressure impregnated (brown)
- without suspension parts and suspension bearings
- without plastic caps

Many combinations are possible for the suspension swing:
- 2 Birds Nest swings Ø 1.20 m side by side
- 1 Birds Nest swings Ø 1.20 and 1 swing chair
- 1 Birds Nest swings Ø 1.20 and 1 to 2 swing seats
- 2 swing seats

Quality Guarantee:
To ensure the best possible quality for you, our products are manufactured
in our own production halls in Germany and checked again by our qualified staff before delivery.

Properties
Article number
4577-3-250
Equipment height
2.75 m
Space requirement
7.00 x 3.50 m
Safety zone
8.00 x 5.30 m
Min. fall protection
33 m²
Height of fall for bird’s nest
1.55 m
Height of fall for single-seat swings
1.45 m
Suspension height
2.50 m
Concrete necessary m³
3.00 m³
Number of user
6
Standards and Rules
EN 1176
